ET-RXB-15 Receiver Module FSK RXB15 100pcs lot Modtagermoduler Sprejemnik Receptor Modul

Price: US $637.00 / lot
100 pieces / lot, US $6.37 / piece
Shipping: DHL / Fedex free shipping
Ships out within 7 days
Payment: Bank Transfer, Western Union, Paypal

Price List

10 pieces
10 pieces / lot
US $85.80 / lot
DHL Free Shipping
50 pieces
50 pieces / lot
US $342.00 / lot
DHL Free Shipping
100 pieces
100 pieces / lot
US $637.00 / lot
DHL Free Shipping

Product Description

ET-RXB-15 Receiver Module FSK RXB15 100pcs/lot Free Shipping

ET-RXB-15 Key Feature


Modulation Mode : FSK / FM
Operating Frequency : 433.92 Mhz
Operating Voltage : 3.6~5.5 V
Operating Current : 4.6 (Enable mode: 10 nA) mA
Data Rate : 9.6 Kbps
Sensitivity : -118 dbm
Operating Temperature : -40~+85 °C
Working Distance : >500 m
Dimension : 31.5*13.6*5 mm

ET-RXB-15 Application


Car security system
Body Control Module system (BCM)
Remote Keyless Entry system (RKE)
Tire-Pressure Monitoring system (TPMS)
Remote keyless entry
Garage door controller
Home security
Wireless mouse
Automation system

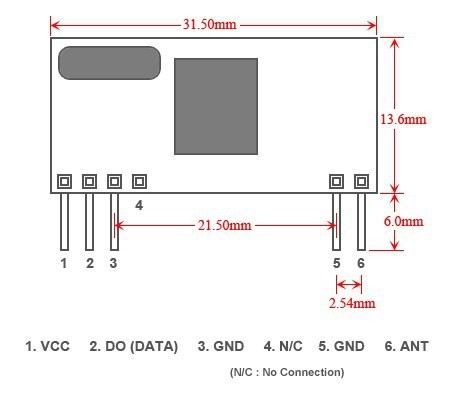

ET-RXB-15 Pin Dimension


NOTE :

ET-RXB-15 Drive Current from Data-PIN is weak,, if directly connection with Driving Chip which I/O can not connect Pull Up Resistor or Pull Down Resistor, Driving Chip inner Pull Up Resistor and Pull Down Resistor turn to Disabled State.

ASK / OOK Transmitter Module

Image Model Modulation Mode Freq (MHz) Voltage (V) Current (mA) Data Rate (Kbps) Output Power (dbm) Dimension (mm) Working Distance (m) Price +
DHL Free Shipping
ET-TX-1 ASK / OOK 433.92 3~12 10 (Quiescent current : 0) 9.6 ≥10 11*16*5 300~500 10 : $4.09
50 : $2.28
100 : $1.88
ET-TX-5 ASK / OOK 433.92 1.8~3.6 10 (Quiescent current : 0) 9.6 ≥10 11*16*5 300~500 10 : $4.81
50 : $2.98
100 : $2.60

ASK / OOK Receiver Module

Image Model Modulation Mode Freq (MHz) Voltage (V) Current (mA) Data Rate (Kbps) Sensitivity (dbm) Dimension (mm) Working Distance (m) Price +
DHL Free Shipping
ET-RX-14 ASK / OOK 433.92 3.3~5.5 3.8~4.1 2.4 -107 35*8.5*5 300 10 : $4.09
50 : $2.28
100 : $1.88
ET-RX-13 ASK / OOK 433.92 3.3~5.5 3.8~4.1 2.4 -107 30*8.5*5 300 10 : $4.09
50 : $2.28
100 : $1.88
ET-RXB-12 ASK / OOK 433.92 3.3~5.5 3.8~4.1 2.4 -107 30*8.5*5 300 10 : $4.81
50 : $2.98
100 : $2.60
ET-RXB-11 ASK / OOK 433.92 3.3~5.5 3.8~4.1 2.4 -107 43*11*5 300 10 : $4.81
50 : $2.98
100 : $2.60
ET-RXB-10 ASK / OOK 433.92 3.3~5.5 3.8~4.1 4.8 -107 33*11*5 300 10 : $4.81
50 : $2.98
100 : $2.60
ET-RXB-9 ASK / OOK 433.92 4.5~5.5 9.6 5 -114 43*12.3*5 300 10 : $6.17
50 : $4.42
100 : $3.96
ET-RXB-8 ASK / OOK 433.92 4.5~5.5 9.6 2.4 -114 31.5*13.6*5 300 10 : $6.17
50 : $4.42
100 : $3.96

FSK / FM Transmitter Module

Image Model Modulation Mode Freq (MHz) Voltage (V) Current (mA) Data Rate (Kbps) Output Power (dbm) Dimension (mm) Working Distance (m) Price +
DHL Free Shipping
ET-TX-3 FSK / FM 433.92 1.8~3.6 10 (Quiescent current : 0) 9.6 10 12.3*16*5 >500 10 : $6.50
50 : $4.78
100 : $4.29

FSK / FM Receiver Module

Image Model Modulation Mode Freq (MHz) Voltage (V) Current (mA) Data Rate (Kbps) Sensitivity (dbm) Dimension (mm) Working Distance (m) Price +
DHL Free Shipping
ET-RXB-3 FSK / FM 433.92 3.6~5.5 6 9.6 -118 43*11.3*5 >500 10 : $8.58
50 : $6.84
100 : $6.37
ET-RXB-15 FSK / FM 433.92 3.6~5.5 4.6 9.6 -118 31.5*13.6*5 >500 10 : $8.58
50 : $6.84
100 : $6.37

Shipping :

If you need us to declare low value on the Invoice please contact us before delivery.

Warranty :

Any quality issue, please feedback the issue within 60days.

Feedback :

Please giver us positive feedback if you are satisfied with our product and service.

Service :

Any questions, please don't hesitate to contact us, we will get back to you within 24hours.
