ET-RXB-10 ASK OOK Superheterodyne Receiver Module RXB10 100pcs lot Ontvangstmodule Byggemodul Alici Modul
| Price: | US $260.00 / lot |
| 100 pieces / lot, US $2.60 / piece | |
| Shipping: | DHL / Fedex free shipping |
| Ships out within 7 days | |
| Payment: | Bank Transfer, Western Union, Paypal |
Price List
|
|
| 10 pieces / lot | |
| US $48.10 / lot | |
| DHL Free Shipping |
|
|
| 50 pieces / lot | |
| US $149.00 / lot | |
| DHL Free Shipping |
|
|
| 100 pieces / lot | |
| US $260.00 / lot | |
| DHL Free Shipping |
Product Description
ET-RXB-10 ASK OOK Superheterodyne Receiver Module RXB10 100pcs/lot Free Shipping
ET-RXB-10 Key Feature
Modulation Mode : ASK / OOK
Operating Frequency : 433.92 Mhz
Operating Voltage : 3.3~5.5 V
Operating Current : 3.8~4.1 mA
Data Rate : 4.8 Kbps
Sensitivity : -107 dbm
Operating Temperature : -30~+85 °C
Working Distance : 300 m
Dimension : 33*11*5 mm
ET-RXB-10 Application
Car security system
Remote keyless entry
Garage door controller
Home security
Wireless mouse
Automation system

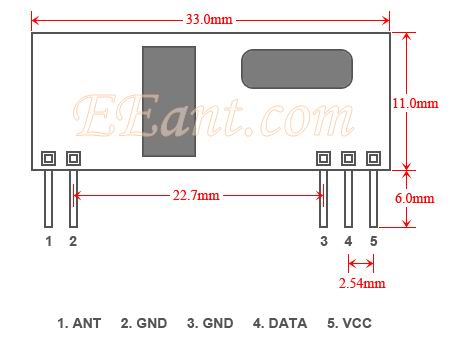

ET-RXB-10 Pin Dimension
NOTE :
ET-RXB-10 Drive Current from Data-PIN is weak,, if directly connection with Driving Chip which I/O can not connect Pull Up Resistor or Pull Down Resistor, Driving Chip inner Pull Up Resistor and Pull Down Resistor turn to Disabled State.
ASK / OOK Transmitter Module
| Image | Model | Modulation Mode | Freq (MHz) | Voltage (V) | Current (mA) | Data Rate (Kbps) | Output Power (dbm) | Dimension (mm) | Working Distance (m) | Price + DHL Free Shipping |
 |
ET-TX-1 | ASK / OOK | 433.92 | 3~12 | 10 (Quiescent current : 0) | 9.6 | ≥10 | 11*16*5 | 300~500 | 10 : $4.09 50 : $2.28 100 : $1.88 |
 |
ET-TX-5 | ASK / OOK | 433.92 | 1.8~3.6 | 10 (Quiescent current : 0) | 9.6 | ≥10 | 11*16*5 | 300~500 | 10 : $4.81 50 : $2.98 100 : $2.60 |
ASK / OOK Receiver Module
| Image | Model | Modulation Mode | Freq (MHz) | Voltage (V) | Current (mA) | Data Rate (Kbps) | Sensitivity (dbm) | Dimension (mm) | Working Distance (m) | Price + DHL Free Shipping |
 |
ET-RX-14 | ASK / OOK | 433.92 | 3.3~5.5 | 3.8~4.1 | 2.4 | -107 | 35*8.5*5 | 300 | 10 : $4.09 50 : $2.28 100 : $1.88 |
 |
ET-RX-13 | ASK / OOK | 433.92 | 3.3~5.5 | 3.8~4.1 | 2.4 | -107 | 30*8.5*5 | 300 | 10 : $4.09 50 : $2.28 100 : $1.88 |
 |
ET-RXB-12 | ASK / OOK | 433.92 | 3.3~5.5 | 3.8~4.1 | 2.4 | -107 | 30*8.5*5 | 300 | 10 : $4.81 50 : $2.98 100 : $2.60 |
 |
ET-RXB-11 | ASK / OOK | 433.92 | 3.3~5.5 | 3.8~4.1 | 2.4 | -107 | 43*11*5 | 300 | 10 : $4.81 50 : $2.98 100 : $2.60 |
| |
ET-RXB-10 | ASK / OOK | 433.92 | 3.3~5.5 | 3.8~4.1 | 4.8 | -107 | 33*11*5 | 300 | 10 : $4.81 50 : $2.98 100 : $2.60 |
 |
ET-RXB-9 | ASK / OOK | 433.92 | 4.5~5.5 | 9.6 | 5 | -114 | 43*12.3*5 | 300 | 10 : $6.17 50 : $4.42 100 : $3.96 |
 |
ET-RXB-8 | ASK / OOK | 433.92 | 4.5~5.5 | 9.6 | 2.4 | -114 | 31.5*13.6*5 | 300 | 10 : $6.17 50 : $4.42 100 : $3.96 |
FSK / FM Transmitter Module
| Image | Model | Modulation Mode | Freq (MHz) | Voltage (V) | Current (mA) | Data Rate (Kbps) | Output Power (dbm) | Dimension (mm) | Working Distance (m) | Price + DHL Free Shipping |
 |
ET-TX-3 | FSK / FM | 433.92 | 1.8~3.6 | 10 (Quiescent current : 0) | 9.6 | 10 | 12.3*16*5 | >500 | 10 : $6.50 50 : $4.78 100 : $4.29 |
FSK / FM Receiver Module
| Image | Model | Modulation Mode | Freq (MHz) | Voltage (V) | Current (mA) | Data Rate (Kbps) | Sensitivity (dbm) | Dimension (mm) | Working Distance (m) | Price + DHL Free Shipping |
 |
ET-RXB-3 | FSK / FM | 433.92 | 3.6~5.5 | 6 | 9.6 | -118 | 43*11.3*5 | >500 | 10 : $8.58 50 : $6.84 100 : $6.37 |
 |
ET-RXB-15 | FSK / FM | 433.92 | 3.6~5.5 | 4.6 | 9.6 | -118 | 31.5*13.6*5 | >500 | 10 : $8.58 50 : $6.84 100 : $6.37 |
