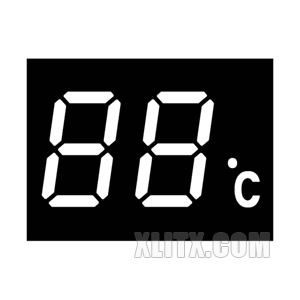

CL4213BW - 0.40-inch White 2-Digit CA LED 7-Segment Display
| Price: |
|
||
|
|||
|
|||
| Shipping: | DHL / Fedex free shipping | ||
| Ships out within 5 days | |||
| Payment: |  |
Product Description
Model: CL4213BW
Size: 0.40-inch
Emitting color: White
Mode: Common-Anode (CA)
Digit: 2-Digit
Category: LED 7-Segment Display
Maker: XLITX TECHNOLOGY
1. Electro-Optical Characteristics(Ta=25℃)
| PARAMETER | SYMBOL | DEVICES (White) | UNIT | TEST CONDIONS | |
| TYP | MAX | ||||
| Peak Emission Wavelengrth | λp | 470 | nm | IF=10mA | |
| Forward Voltage | VF | 3.5 | V | IF=10mA | |
| Reverse Current | IR | 50 | μA | VR=5V | |
| Segment To Segment (Dot To Dot) Luminonous Intensity Ratio | IV-M | 1.5:1 | IF=20 | ||
2. Absolute Maximun Ratings(Ta=25℃)
| PARAMETER | SYMBOL | DEVICES (White) | UNIT |
| Power Dissipation Per Dice | pad | 70 | mw |
| Derating Linear From 25℃ Per Dice | 0.27 | mA/℃ | |
| Continuous Forward Current Per Dice | laf | 30 | mA |
| Peak Forward Ourrent Per Dice (Duty Cycle 1/10,10KHz) | lpf | 100 | mA |
| Reverse Voltage Per Dice | Vr | 5 | V |
| Operating Temperature | Topr | -20℃ (to) +75℃ | |
| Storage Temperature | Tstg | -20℃ (to) +85℃ | |
| Solder Temperature | 1.6Inch Below Seating Place for 5 seconds at 230℃ | ||
3. Electro-Optical Curve
